Universal Radial Grading Machine (Type R)
Product Details:
X
Product Description

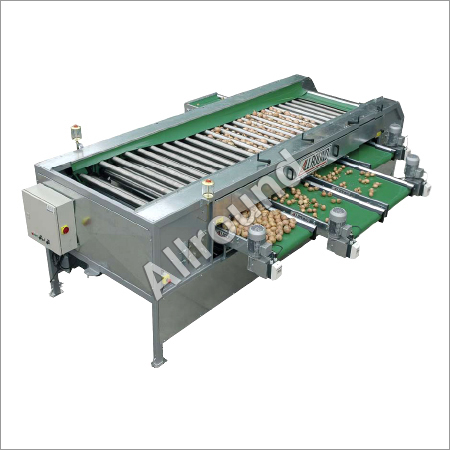

Universal Radial Grading Machine
- Moe outlet belts than 4 wider outlet belts than 400mm
- Products: Potatoes, Carrots, Baby carrots, Onions, set onions, red beet, turnips, etc.
- Capacity depending on length of the rollers
- Accuracy depending on width of the outlet belt.
| Series R 120 | Type R 120.57.3 | R 120.70.80.3 | R 120.70.90.3 | R 120.84.3 | R 120.70.100.3 |
| Length (mm) | 4700 | 4700 | 4700 | 4700 | 4700 |
| Width (mm) | 1600 | 1600 | 1650 | 1650 | 1650 |
| Minimum grading (mm) | 6 | 10 | 20 | 16 | 30 |
| Maximum grading (mm) | 69 | 90 | 110 | 116 | 130 |
| Chain pitch | 63 | 80 | 90 | 100 | 100 |
| Diameter rollers (mm) | 57 | 70 | 70 | 84 | 70 |
| Drive grading bed (kW 60:1) | 1, 5 | 1, 5 | 1, 5 | 1, 5 | 1, 5 |
| Width transport belt standard(mm) | 600 | 600 | 600 | 600 | 600 |
| Drive transport belts (kW) | 0,75 | 0,75 | 0, 75 | 0, 75 | 0, 75 |
| Drive transport belt more than 600 in width (kW) | 1,1 | 1, 1 | 1, 1 | 1, 1 | 1, 1 |
| Brush | Optional | Optional | Optional | Optional | Optional |
| Elevator | Optional | Optional | Optional | Optional | Optional |
| Stainles steel machine | Optional | Optional | Optional | Optional | Optional |
